Two Level Layout

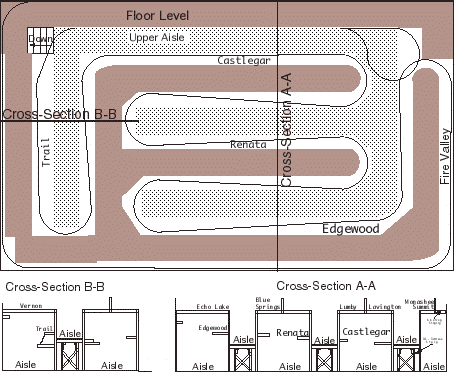

The diagrams below show the aisles and towns on
each of the two levels of the EMRA's layout.
The cross sections at the bottom show the
benchwork construction.
Have a look at the
mushroom aisles under construction, or
visit a
Virtual Tour
to see progress in construction.
Notes:
- there is over six feet of headroom in the lower
aisles.
- we have avoided a helix to join the
two levels by running to the left from
Monashee Summit, then along three walls of the room,
through Fire Valley.
